Change HES Strike wiring harness between 12V / 24V

To change a HES door strike from 12V to 24V or back, use the drawings below.

Door Strike Configuration

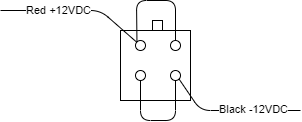

Pigtail Configuration

If you need to change the pigtail, you will need to clip a loop and reconfigure it to match the drawings below.
