Notifier Components Terminal Connections

Terminal Details for NFS2-3030, NFS2-3030 SLC, LCD-320, UDACT2, LCM-320, DAA2

NFS2-3030

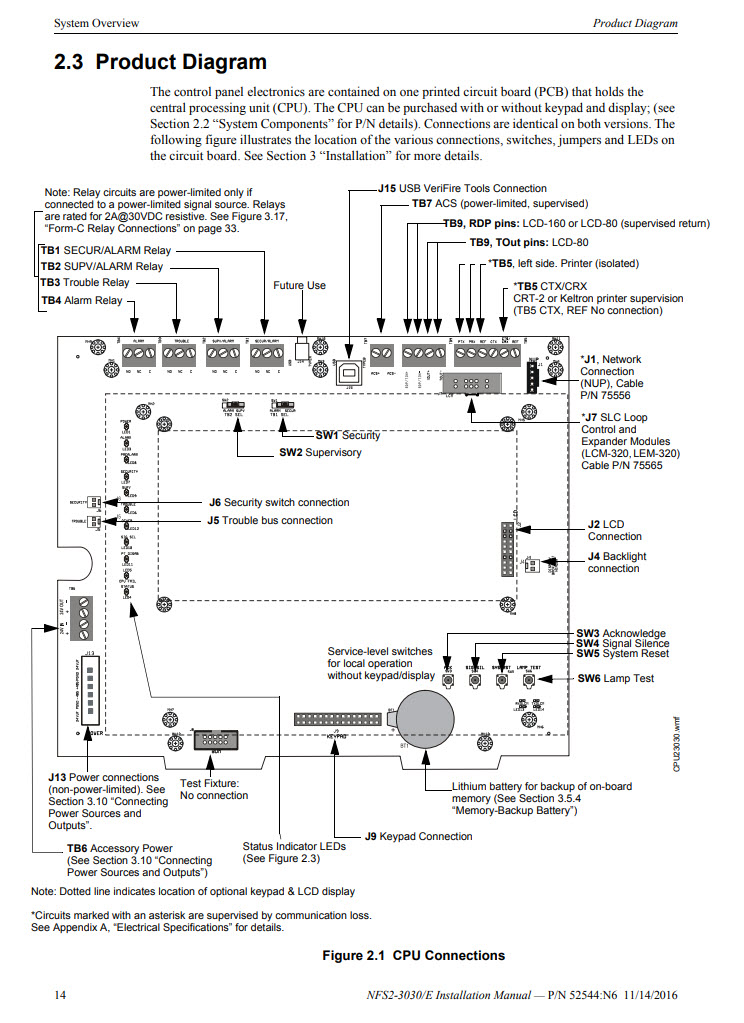

NFS2-3030 Wire Terminals — NFS2-3030 Terminal Chart

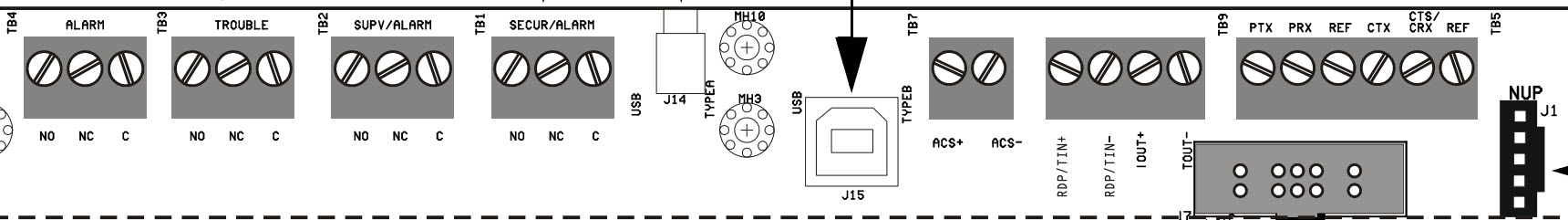

NFS2-3030 Top Terminal Detail

LCM-320

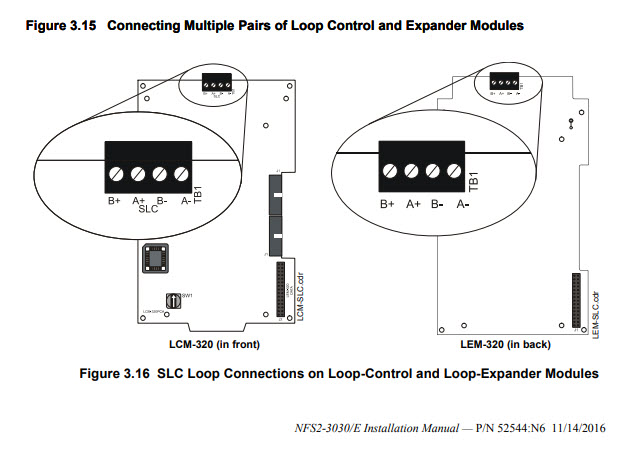

LCM-320 Terminals

NFS2-3030 SLC

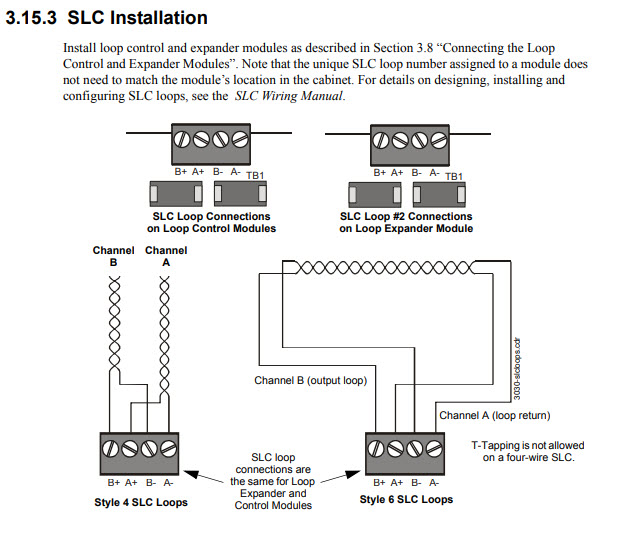

NFS2-3030 SLC Wiring

UDACT-2

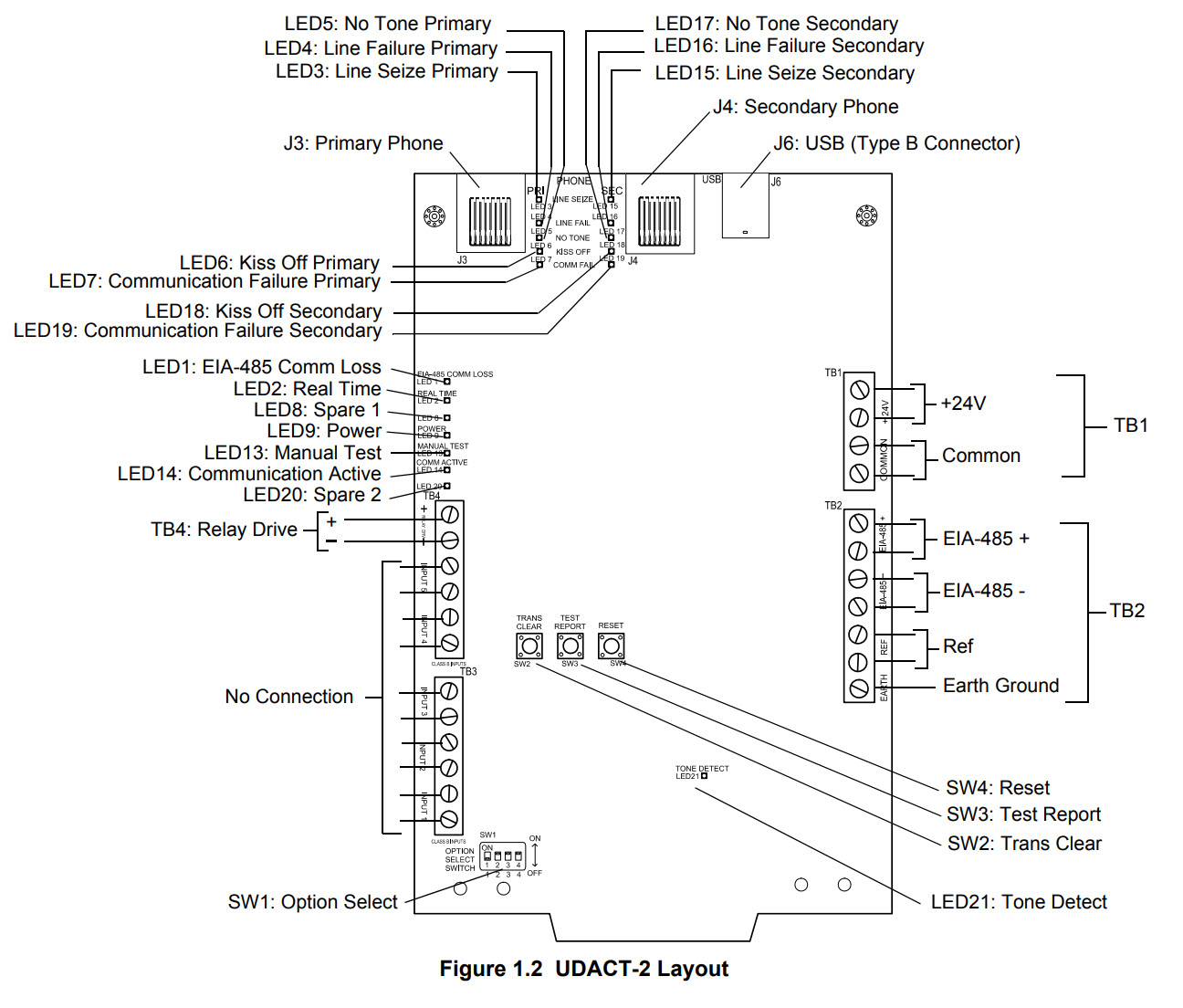

UDACT 2 Terminals

LCD-160

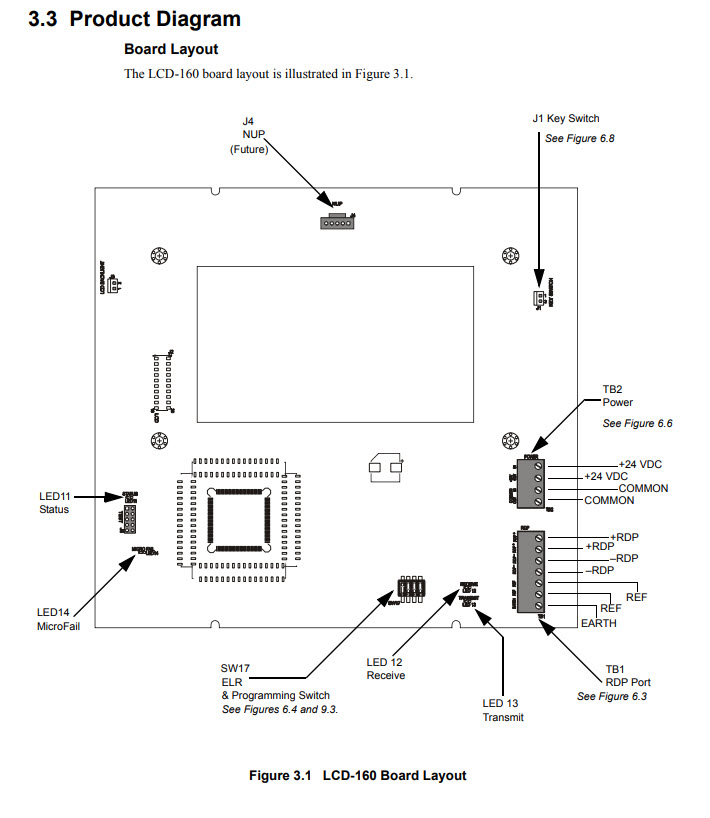

LCD-160 Board Layout

DAA2

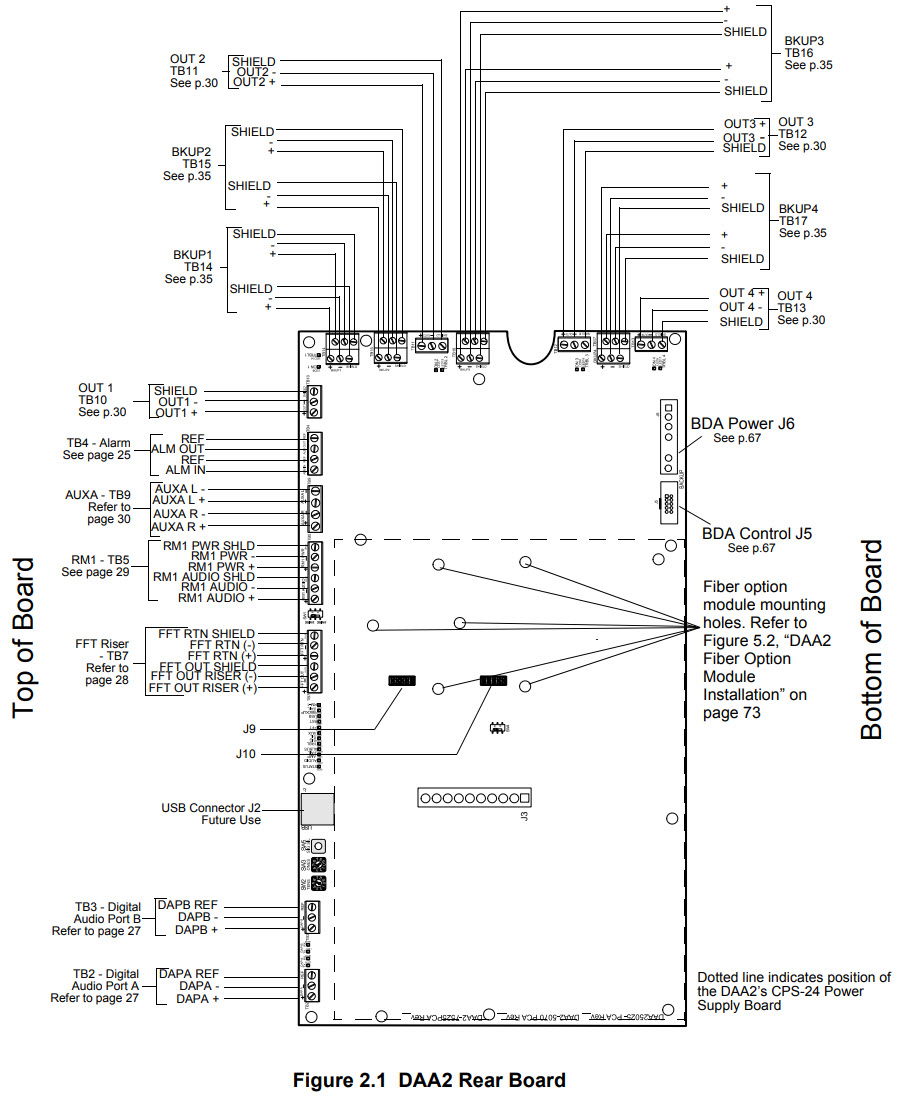

DAA2 Terminals

↑
